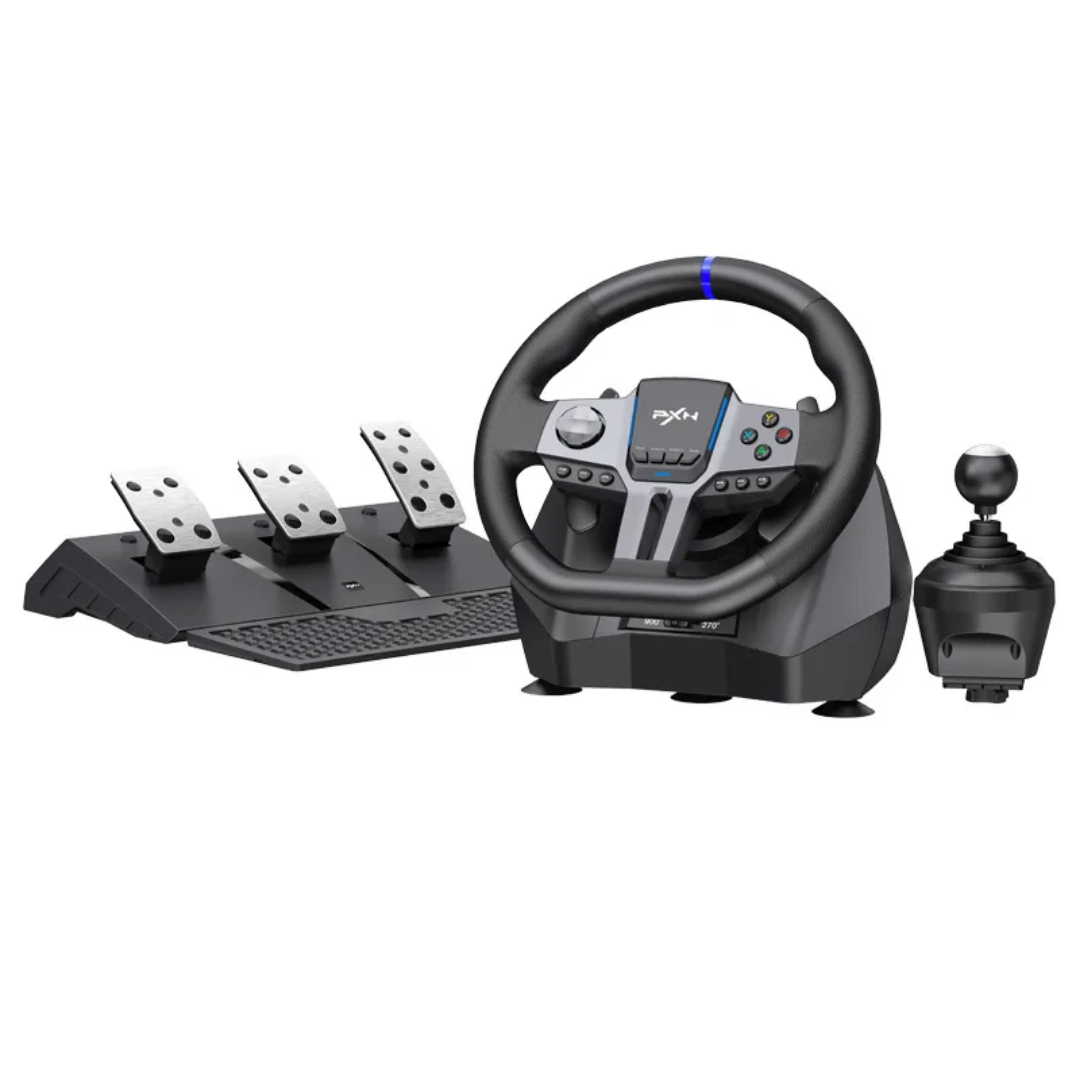

Here are the detailed specifications for the PXN V9 Gen 2 Racing Wheel
🎮 Key Features & Compatibility
-Adjustable steering: Switch between 270° and 900° rotation for arcade or simulation racing .
-Wide compatibility: Works across PC (Windows 7/8/10/11, X-input/D-input), PS3, PS4, Xbox One/X/S, and Nintendo Switch .
-Dual vibration motors: Offers vibration feedback (not force feedback) for more immersive gameplay .
-16-bit magnetic encoder: Ensures precise wheel input detection .
-Pedals & shifter included: Comes with a 3‑foot hall magnetic linear pedal set (throttle, brake, clutch) and a 6‑speed H-pattern shifter + reverse
🛠️ Physical Specs & Build
-Steering wheel diameter: ~28 cm (11″) .
-Wheel grip: TPU rubber, ergonomic, sweat-resistant .
-Paddle shifters: ABS dual paddles for gear shifting .
-RGB light bars on the wheel for visual throttle/brake feedback .
-Pedal unit dimensions: 23.2 × 18.3 × 14 cm .
-Shifter size: 11 × 11 × 18.5 cm .
-Total weight: ~3.28 kg .
-Voltage/current: 5 V; ~80 mA idle, <150 mA vibrating, <500 mA during controller mode .
Operating conditions: 10–40 °C, 20–80 % humidity .
🔌 Connectivity & Extras
Wired USB connection (two Type‑C and one Micro‑USB cables included) .
Plug & play: No manual driver install needed on most platforms .
App support: Use the “PXN Wheel” or “V9 Assistant” mobile/PC app to adjust steering angle, sensitivity, vibration intensity, and remap buttons .
Mounting: Includes suction cups and C‑brackets for secure desk attachment .
📦 In the Box
Wheel unit
3‑pedal hall magnetic pedal board
6+R H-pattern shifter
2 C‑clamps + 5–7 suction cups
2 Type‑C to USB-A cables, 1 Micro‑USB cable
User manual
